JavaFX Tutorial - JavaFX BubbleChart








The bubble chart is a two-axis chart that draws bubbles for the data points in a series.

Creating a Bubble Chart

To create a bubble chart, we create the BubbleChart class, define horizontal and vertical axes, and add one or more series of data using the XYChart.Data class.

/*//  w  w w. j  a va2 s.  c  om
 * Copyright (c) 2011, 2012 Oracle and/or its affiliates.
 * All rights reserved. Use is subject to license terms.
 *
 * This file is available and licensed under the following license:
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions
 * are met:
 *
 *  - Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 *  - Redistributions in binary form must reproduce the above copyright
 *    notice, this list of conditions and the following disclaimer in
 *    the documentation and/or other materials provided with the distribution.
 *  - Neither the name of Oracle nor the names of its
 *    contributors may be used to endorse or promote products derived
 *    from this software without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
 * "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
 * LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
 * A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
 * OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 * LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
 * DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
 * THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
 * (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
 * OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
 */


//package bubblechartsample;

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.chart.BubbleChart;
import javafx.scene.chart.NumberAxis;
import javafx.scene.chart.XYChart;
import javafx.scene.paint.Color;
import javafx.stage.Stage;


public class Main extends Application {

    @Override public void start(Stage stage) {
        stage.setTitle("Bubble Chart Sample");
        final NumberAxis xAxis = new NumberAxis(1, 53, 4);
        final NumberAxis yAxis = new NumberAxis(0, 80, 10);
        final BubbleChart<Number,Number> blc =
            new BubbleChart<Number,Number>(xAxis,yAxis);
        xAxis.setLabel("Week");
        xAxis.setTickLabelFill(Color.CHOCOLATE);
        xAxis.setMinorTickCount(4);

        yAxis.setLabel("Product Budget");
        yAxis.setTickLabelFill(Color.CHOCOLATE);
        yAxis.setTickLabelGap(10);
        yAxis.setTickLabelFormatter(
            new NumberAxis.DefaultFormatter(yAxis,"$ ",null)
        );

        blc.setTitle("Budget Monitoring");

        XYChart.Series series1 = new XYChart.Series();
        series1.setName("Product 1");
        series1.getData().add(new XYChart.Data(3, 35, 2));
        series1.getData().add(new XYChart.Data(12, 60, 1.8));
        series1.getData().add(new XYChart.Data(15, 15, 7));
        series1.getData().add(new XYChart.Data(22, 30, 2.5));
        series1.getData().add(new XYChart.Data(28, 20, 1));
        series1.getData().add(new XYChart.Data(35, 41, 5.5));
        series1.getData().add(new XYChart.Data(42, 17, 9));
        series1.getData().add(new XYChart.Data(49, 30, 1.8));

        XYChart.Series series2 = new XYChart.Series();
        series2.setName("Product 2");
        series2.getData().add(new XYChart.Data(8, 15, 2));
        series2.getData().add(new XYChart.Data(13, 23, 1));
        series2.getData().add(new XYChart.Data(15, 45, 3));
        series2.getData().add(new XYChart.Data(24, 30, 4.5));
        series2.getData().add(new XYChart.Data(38, 78, 1));
        series2.getData().add(new XYChart.Data(40, 41, 7.5));
        series2.getData().add(new XYChart.Data(45, 57, 2));
        series2.getData().add(new XYChart.Data(47, 23, 3.8));

        Scene scene  = new Scene(blc);
        blc.getData().addAll(series1, series2);
        //scene.getStylesheets().add("bubblechartsample/Chart.css");
        stage.setScene(scene);
        stage.show();
    }

    public static void main(String[] args) {
        launch(args);
    }
}

The NumberAxis.DefaultFormatter class adds prefixes and suffixes to the tick labels of the specified axis.

yAxis.setTickLabelFormatter(new NumberAxis.DefaultFormatter(yAxis,"$ ",null));

The following code lines specify the CHOCOLATE color for the tick labels.

xAxis.setTickLabelFill(Color.CHOCOLATE);
yAxis.setTickLabelFill(Color.CHOCOLATE);

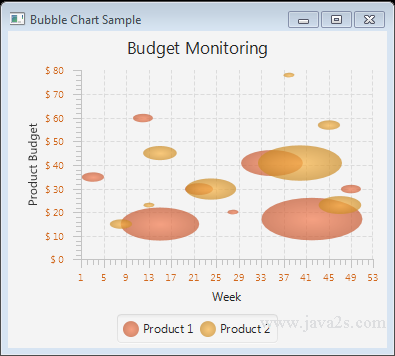

The code above generates the following result.

null




Example

import javafx.application.Application;
import javafx.collections.FXCollections;
import javafx.collections.ObservableList;
import javafx.scene.Scene;
import javafx.scene.chart.BubbleChart;
import javafx.scene.chart.NumberAxis;
import javafx.scene.chart.XYChart;
import javafx.scene.chart.XYChart.Series;
import javafx.scene.layout.StackPane;
import javafx.stage.Stage;
//from  ww w .  j  a  v a 2  s .com
public class Main extends Application {
    public static void main(String[] args) {
        launch(args);
    }
    @Override
    public void start(Stage primaryStage) {
        NumberAxis xAxis = new NumberAxis();
        NumberAxis yAxis = new NumberAxis();
        xAxis.setAutoRanging(false);
        xAxis.setLowerBound(2011);
        xAxis.setUpperBound(2016);
        BubbleChart bubbleChart = new BubbleChart(xAxis, yAxis);
        bubbleChart.setData(getChartData());
        bubbleChart.setTitle("Title");
        primaryStage.setTitle("Chart example");

        StackPane root = new StackPane();
        root.getChildren().add(bubbleChart);
        primaryStage.setScene(new Scene(root, 400, 250));
        primaryStage.show();
    }

    private ObservableList<XYChart.Series<Integer, Double>> getChartData() {
        double aValue = 1.56;
        double bValue = 1.06;
        ObservableList<XYChart.Series<Integer, Double>> answer = FXCollections.observableArrayList();
        Series<Integer, Double> aSeries = new Series<Integer, Double>();
        Series<Integer, Double> bSeries = new Series<Integer, Double>();
        aSeries.setName("A");
        bSeries.setName("B");
        for (int i = 2011; i < 2016; i++) {
            double diff = Math.random();
            aSeries.getData().add(new XYChart.Data(i, aValue, diff));
            aValue = aValue + 10*diff - 5;
            diff = Math.random();
            bSeries.getData().add(new XYChart.Data(i, bValue, diff));
            bValue = bValue + 10*diff - 5;
            diff = Math.random();
        }
        answer.addAll(aSeries, bSeries);
        return answer;
    }
}

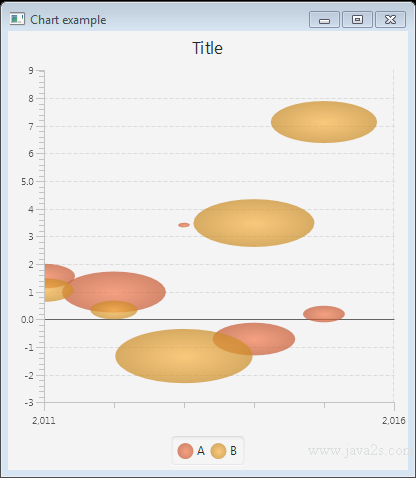

The code above generates the following result.
