A ScrollView is a special type of FrameLayout which support scrolling through a list of views that occupy more space than the physical display.

The ScrollView can contain only one child view or ViewGroup, which normally is a LinearLayout.

Do not use a ListView together with the ScrollView.

Example

The following main.xml content shows a ScrollView containing a LinearLayout, which in turn contains some Button and EditText views:

<ScrollView
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    xmlns:android="http://schemas.android.com/apk/res/android" >

    <LinearLayout
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical" >
        <Button
            android:id="@+id/button1"
              android:layout_width="fill_parent"
              android:layout_height="wrap_content"
              android:text="Button 1" />
          <Button
              android:id="@+id/button2"
              android:layout_width="fill_parent"
              android:layout_height="wrap_content"
              android:text="Button 2" />
          <Button
              android:id="@+id/button3"
              android:layout_width="fill_parent"
              android:layout_height="wrap_content"
              android:text="Button 3" />
          <EditText
              android:id="@+id/txt"
              android:layout_width="fill_parent"
              android:layout_height="600dp" />
          <Button
              android:id="@+id/button4"
              android:layout_width="fill_parent"
              android:layout_height="wrap_content"
              android:text="Button 4" />
          <Button
              android:id="@+id/button5"
              android:layout_width="fill_parent"
              android:layout_height="wrap_content"
              android:text="Button 5" />
      </LinearLayout>
</ScrollView>

Note

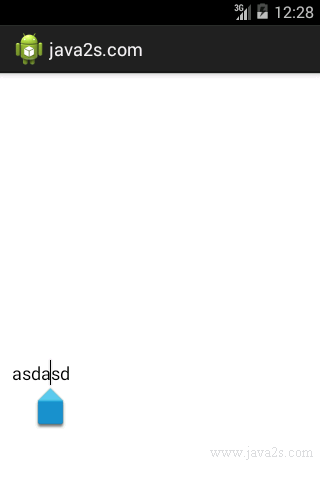

Because the EditText automatically gets the focus, it fills up the entire activity.

To prevent it from getting the focus, add the following two attributes to the <LinearLayout> element:

<LinearLayout
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical"
    android:focusable="true"
    android:focusableInTouchMode="true" >

You will now be able to view the buttons and scroll through the list of views.
