Android UI Tutorial - Android FrameLayout








The FrameLayout is a placeholder on screen that you can use to display a single view.

Views that you add to a FrameLayout are always anchored to the top left of the layout.

You can add multiple views to a FrameLayout, but each will be stacked on top of the previous one.

Example

Consider the following content in main.xml:

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    android:id="@+id/RLayout"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    xmlns:android="http://schemas.android.com/apk/res/android" >

    <TextView
        android:id="@+id/lblComments"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Hello, Android!"
        android:layout_alignParentTop="true"
        android:layout_alignParentLeft="true" />

    <FrameLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/lblComments"
        android:layout_below="@+id/lblComments"
        android:layout_centerHorizontal="true" >

        <ImageView
            android:src = "@drawable/droid"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />

    </FrameLayout>
</RelativeLayout>

null

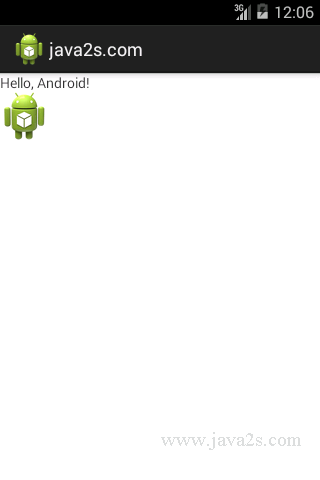

In the code above you have a FrameLayout within a RelativeLayout. Within the FrameLayout, you embed an ImageView.

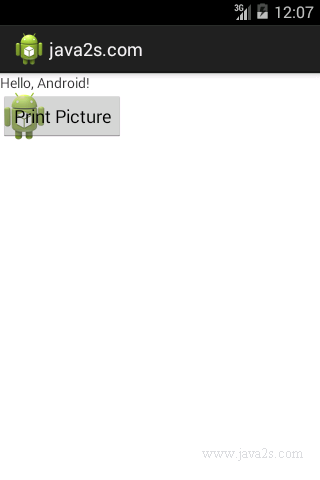

If you add another view (such as a Button view) within the FrameLayout, the view will overlap the previous view:

<RelativeLayout
    android:id="@+id/RLayout"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    xmlns:android="http://schemas.android.com/apk/res/android"
    >
    <TextView
        android:id="@+id/lblComments"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Hello, Android!"
        android:layout_alignParentTop="true"
        android:layout_alignParentLeft="true"
        />
    <FrameLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignLeft="@+id/lblComments"
        android:layout_below="@+id/lblComments"
        android:layout_centerHorizontal="true" >
        <ImageView
            android:src = "@drawable/droid"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />

        <Button
            android:layout_width="124dp"
            android:layout_height="wrap_content"
            android:text="Print Picture" />

    </FrameLayout>
</RelativeLayout>
