Union two Rectangles in Java
Description
The following code shows how to union two Rectangles.
Example
/*from w ww. java 2 s . c o m*/
import java.awt.Color;
import java.awt.Graphics;
import java.awt.Rectangle;
import javax.swing.JComponent;
import javax.swing.JFrame;
class MyCanvas extends JComponent {
public void paint(Graphics g) {
Rectangle r = new Rectangle(50, 50, 100, 100);
Rectangle r1 = new Rectangle(100, 100, 75, 75);
g.setColor(Color.lightGray);
Rectangle r2 = r.union(r1);
g.fillRect(r2.x, r2.y, r2.width, r2.height);
g.setColor(Color.black);
g.drawRect(r.x, r.y, r.width, r.height);
g.drawRect(r1.x, r1.y, r1.width, r1.height);
}
}
public class Main {
public static void main(String[] a) {
JFrame window = new JFrame();
window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
window.setBounds(30, 30, 450, 450);
window.getContentPane().add(new MyCanvas());
window.setVisible(true);
}
}

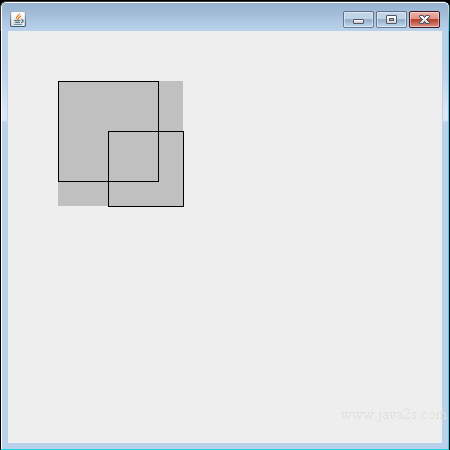

The code above generates the following result.
