Subtract Area in Java

Description

The following code shows how to subtract Area.

Example


import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.Rectangle;
import java.awt.geom.Area;
/*from  ww  w.  j  a  v  a 2  s  .c om*/
import javax.swing.JComponent;
import javax.swing.JFrame;

class MyCanvas extends JComponent {
  public void paint(Graphics g) {
    Graphics2D g2d = (Graphics2D) g;

    Area shape = new Area(new Rectangle(10, 10, 400, 400));
    g2d.draw(shape);

    shape.subtract(new Area(new Rectangle(60, 60, 90, 90)));
    g2d.draw(shape);
  }
}

public class Main {
  public static void main(String[] a) {
    JFrame window = new JFrame();
    window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    window.setBounds(30, 30, 450, 450);
    window.getContentPane().add(new MyCanvas());
    window.setVisible(true);
  }
}

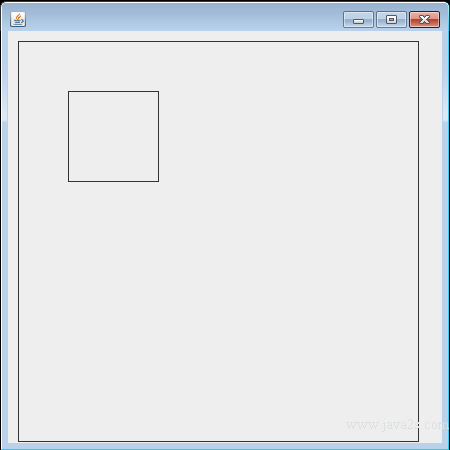

The code above generates the following result.

Subtract Area in Java
