Create an Arc with Arc2D.Double in Java

Description

The following code shows how to create an Arc with Arc2D.Double.

Example


import java.awt.Color;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.RenderingHints;
import java.awt.geom.Arc2D;
/*from   w w w .ja va2s . c  o m*/
import javax.swing.JComponent;
import javax.swing.JFrame;

class MyCanvas extends JComponent {
  public void paint(Graphics g) {
    Graphics2D g2 = (Graphics2D) g;
    g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,
        RenderingHints.VALUE_ANTIALIAS_ON);

    g2.setPaint(Color.gray);
    int x = 5;
    int y = 7;

    g2.draw(new Arc2D.Double(x, y, 200, 200, 90, 135,Arc2D.OPEN));
    g2.drawString("Arc2D", x, 250);
  }
}

public class Main {
  public static void main(String[] a) {
    JFrame window = new JFrame();
    window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    window.setBounds(30, 30, 450, 450);
    window.getContentPane().add(new MyCanvas());
    window.setVisible(true);
  }
}

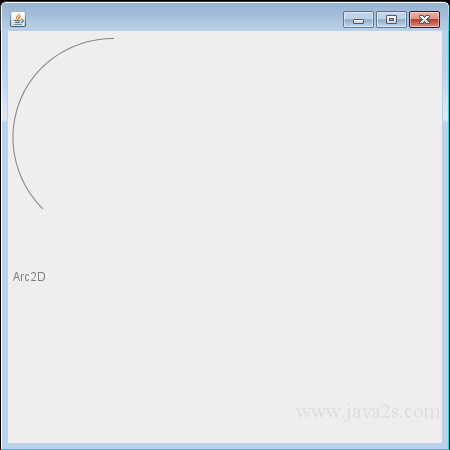

The code above generates the following result.

Create an Arc with Arc2D.Double in Java
