Create an Arc2D.Float(Arc2D.CHORD) in Java

Description

The following code shows how to create an Arc2D.Float(Arc2D.CHORD).

Example


import java.awt.Color;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.geom.Arc2D;
//from  w  ww  .  j  a  va2  s .c o  m
import javax.swing.JComponent;
import javax.swing.JFrame;

class MyCanvas extends JComponent {
  public void paint(Graphics g) {
    Graphics2D g2 = (Graphics2D)g;

    //Draw the chord

      Arc2D.Float arc1 = new Arc2D.Float(Arc2D.CHORD);
      arc1.setFrame(140,30, 67, 46);
      arc1.setAngleStart(45);
      arc1.setAngleExtent(270);
      g2.setColor(Color.blue);
      g2.draw(arc1);
      g2.setColor(Color.gray);
      g2.fill(arc1);
      g2.setColor(Color.black);
      g2.drawString("Arc2D.CHORD", 140, 20);
  }
}

public class Main {
  public static void main(String[] a) {
    JFrame window = new JFrame();
    window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    window.setBounds(30, 30, 450, 450);
    window.getContentPane().add(new MyCanvas());
    window.setVisible(true);
  }
}

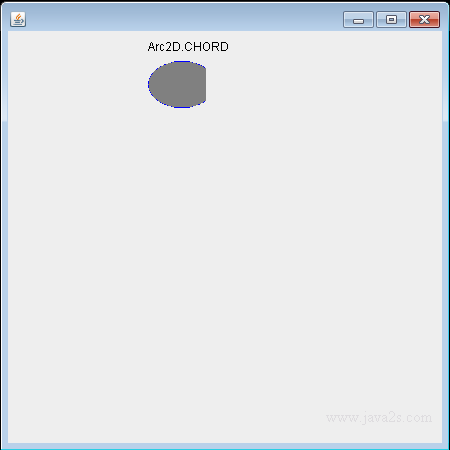

The code above generates the following result.
