Create Acyclic Gradient Paint in Java

Description

The following code shows how to create Acyclic Gradient Paint.

Example


import java.awt.Color;
import java.awt.GradientPaint;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.geom.Line2D;
import java.awt.geom.Point2D;
import java.awt.geom.Rectangle2D;
//  w  w w .ja  va 2 s .  c  o  m
import javax.swing.JComponent;
import javax.swing.JFrame;

class MyCanvas extends JComponent {
  public void paint(Graphics g) {
    Graphics2D g2D = (Graphics2D) g;
    Point2D.Float p1 = new Point2D.Float(150.f, 75.f); // Gradient line start
    Point2D.Float p2 = new Point2D.Float(250.f, 75.f); // Gradient line end
    float width = 300;
    float height = 50;
    Rectangle2D.Float rect1 = new Rectangle2D.Float(p1.x - 100, p1.y - 25, width, height);
    GradientPaint g2 = new GradientPaint(p1, Color.WHITE, p2, Color.DARK_GRAY, false); // Acyclic
                                                                                        // gradient
    rect1.setRect(p1.x - 100, p1.y - 25, width, height);
    g2D.setPaint(g2); // Gradient color fill
    g2D.fill(rect1); // Fill the rectangle
    g2D.setPaint(Color.BLACK); // Outline in black
    g2D.draw(rect1); // Fill the rectangle
    g2D.draw(new Line2D.Float(p1, p2));
  }
}

public class Main {
  public static void main(String[] a) {
    JFrame window = new JFrame();
    window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    window.setBounds(30, 30, 450, 450);
    window.getContentPane().add(new MyCanvas());
    window.setVisible(true);
  }
}

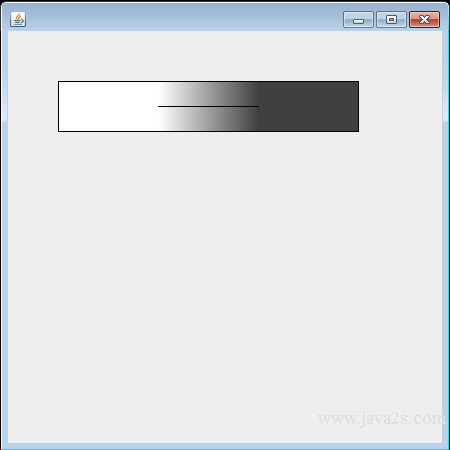

The code above generates the following result.
