Combine Stroke and GradientPaint in Java

Description

The following code shows how to combine Stroke and GradientPaint.

Example


import java.awt.BasicStroke;
import java.awt.Color;
import java.awt.GradientPaint;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.geom.Ellipse2D;
//from w  w w .  j a va2  s .  co  m
import javax.swing.JComponent;
import javax.swing.JFrame;

class MyCanvas extends JComponent {
  public void paint(Graphics g) {
    Graphics2D g2 = (Graphics2D) g;
    double x = 15, y = 50, w = 70, h = 70;
    Ellipse2D e = new Ellipse2D.Double(x, y, w, h);
    GradientPaint gp = new GradientPaint(75, 75, Color.white, 95, 95,
        Color.gray, true);
    g2.setPaint(gp);
    g2.fill(e);

    g2.setStroke(new BasicStroke(8));
    e.setFrame(x + 200, y, w, h);
    g2.setPaint(gp);
    g2.draw(e);

  }
}

public class Main {
  public static void main(String[] a) {
    JFrame window = new JFrame();
    window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    window.setBounds(30, 30, 450, 450);
    window.getContentPane().add(new MyCanvas());
    window.setVisible(true);
  }
}

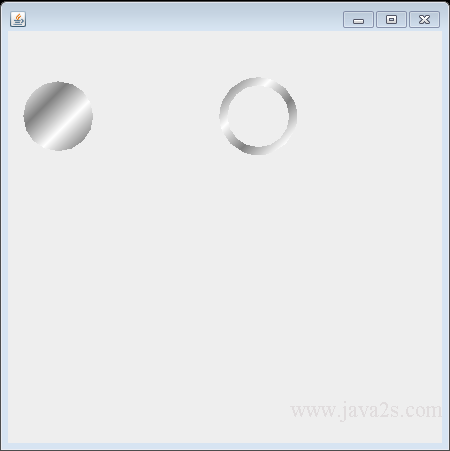

The code above generates the following result.

Combine Stroke and GradientPaint in Java
