What is FrameLayout
Description
The FrameLayout is a placeholder on screen that you can use
to display a single view.
Views that you add to a FrameLayout
are always anchored to the top left of the layout.
You can add multiple views to a FrameLayout, but each will be stacked on top of the previous one.
Example
Consider the following content in main.xml:
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
android:id="@+id/RLayout"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
xmlns:android="http://schemas.android.com/apk/res/android" >
<TextView
android:id="@+id/lblComments"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Hello, Android!"
android:layout_alignParentTop="true"
android:layout_alignParentLeft="true" />
<FrameLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/lblComments"
android:layout_below="@+id/lblComments"
android:layout_centerHorizontal="true" >
<ImageView
android:src = "@drawable/droid"
android:layout_width="wrap_content"
android:layout_height="wrap_content" />
</FrameLayout>
</RelativeLayout>

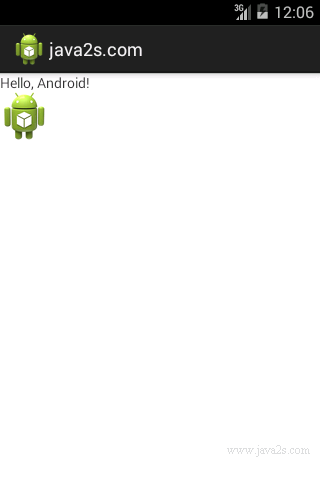

In the code above you have a FrameLayout within a RelativeLayout. Within the FrameLayout, you embed an ImageView.

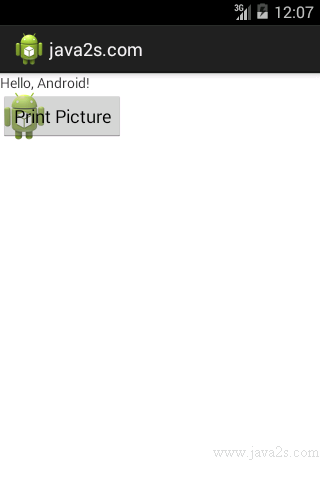

If you add another view (such as a Button view) within the FrameLayout, the view will overlap the previous view:
<RelativeLayout
android:id="@+id/RLayout"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
xmlns:android="http://schemas.android.com/apk/res/android"
>
<TextView
android:id="@+id/lblComments"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Hello, Android!"
android:layout_alignParentTop="true"
android:layout_alignParentLeft="true"
/>
<FrameLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/lblComments"
android:layout_below="@+id/lblComments"
android:layout_centerHorizontal="true" >
<ImageView
android:src = "@drawable/droid"
android:layout_width="wrap_content"
android:layout_height="wrap_content" />
<Button
android:layout_width="124dp"
android:layout_height="wrap_content"
android:text="Print Picture" />
</FrameLayout>
</RelativeLayout>
