Description

To Construct the New Data Points Using Gauss's Forward Method of Interpolation

Demo Code

#include <stdio.h>

#define MAX 20//from  ww w.  j  a  va 2 s.co  m

void main()
{
  int i, j, terms = 10;
  float ax[MAX], ay[MAX], x, y = 0, h, p;
  float diff[MAX][5], y1, y2, y3, y4;
  printf("\nEnter the values of x upto 2 decimal points.\n");
  for (i=0; i<terms; i++) {
    printf("Enter the value of x%d: ", i+1);
    scanf("%f",&ax[i]);
  }
  printf("\nNow enter the values of y upto 4 decimal points.\n");
  for (i=0; i < terms; i++) {
    printf("Enter the value of y%d: ", i+1);
    scanf("%f", &ay[i]);
  }

  x = 20;
  h = ax[1] - ax[0];
  for(i=0; i < terms-1; i++)
    diff[i][1] = ay[i+1] - ay[i];
  for(j=2; j <= 4; j++)
    for(i=0; i < terms-j; i++)
      diff[i][j] = diff[i+1][j-1] - diff[i][j-1];
  i = 0;
  do {
    i++;
  } while(ax[i] < x);
  i--;
  p = (x - ax[i]) / h;
  y1 = p * diff[i][1] ;
  y2 = p * (p - 1) * diff[i - 1][2] / 2;
  y3 = (p + 1) * p * (p - 1) * diff[i - 2][3] / 6;
  y4 = (p + 1) * p * (p - 1) * (p - 2) * diff[i - 3][4] / 24;
  y = ay[i] + y1 + y2 + y3 + y4;
  printf("\nFor x = %6.2f,    y = %6.4f ", x, y);
}

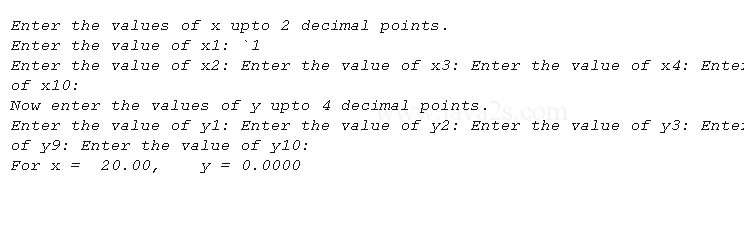

Result
