Draws an arc in PHP
Description
The following code shows how to draws an arc.
Example
<?php//from w w w .j a v a 2s. c o m
// create a 200*200 image
$img = imagecreatetruecolor(200, 200);
// allocate some colors
$white = imagecolorallocate($img, 255, 255, 255);
$red = imagecolorallocate($img, 255, 0, 0);
$green = imagecolorallocate($img, 0, 255, 0);
$blue = imagecolorallocate($img, 0, 0, 255);
// draw the head
imagearc($img, 100, 100, 200, 200, 0, 360, $white);
// mouth
imagearc($img, 100, 100, 150, 150, 25, 155, $red);
// left and then the right eye
imagearc($img, 60, 75, 50, 50, 0, 360, $green);
imagearc($img, 140, 75, 50, 50, 0, 360, $blue);
// output image in the browser
header("Content-type: image/png");
imagepng($img);
// free memory
imagedestroy($img);
?>

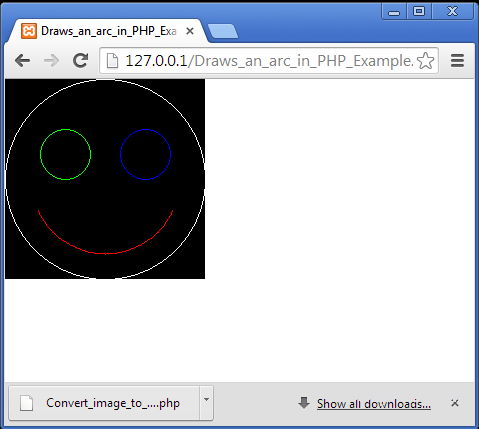

The code above generates the following result.
