Display Tick Marks Within a JSlider in Java
Description
The following code shows how to display Tick Marks Within a JSlider.
Example
/*ww w . j a v a 2 s . c o m*/
import java.awt.BorderLayout;
import javax.swing.BoundedRangeModel;
import javax.swing.JFrame;
import javax.swing.JSlider;
import javax.swing.event.ChangeEvent;
import javax.swing.event.ChangeListener;
public class Main {
public static void main(String args[]) {
JFrame frame = new JFrame("Tick Slider");
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
JSlider jSliderOne = new JSlider();
// Major Tick 25 - Minor 5
jSliderOne.setMinorTickSpacing(5);
jSliderOne.setMajorTickSpacing(25);
jSliderOne.setPaintTicks(true);
jSliderOne.setSnapToTicks(true);
frame.add(jSliderOne, BorderLayout.NORTH);
frame.setSize(300, 200);
frame.setVisible(true);
}
}

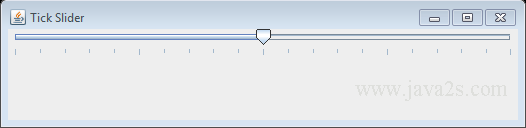

The code above generates the following result.
