Create a custom array button in Java

Description

The following code shows how to create a custom array button.

Example


//ww  w. java 2  s  .  c  om
import java.awt.Color;
import java.awt.Dimension;
import java.awt.Graphics;
import java.awt.Insets;

import javax.swing.BorderFactory;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.SwingConstants;

public class Main extends JFrame {

  public Main() {
    setSize(300, 150);
    setDefaultCloseOperation(EXIT_ON_CLOSE);
    add(new ArrowButton(SwingConstants.SOUTH, 1, 10));
    setVisible(true);
  }

  public static void main(String[] args) {
    new Main();
  }
}

/**
 * A button which paints on it one or more scaled arrows in one of the cardinal
 * directions.
 *
 * @author Adrian BER
 */
class ArrowButton extends JButton {

  /** The cardinal direction of the arrow(s). */
  private int direction;

  /** The number of arrows. */
  private int arrowCount;

  /** The arrow size. */
  private int arrowSize;

  public ArrowButton(int direction, int arrowCount, int arrowSize) {
    setMargin(new Insets(0, 2, 0, 2));
    setBorder(BorderFactory.createEmptyBorder(2, 2, 2, 2));
    this.direction = direction;
    this.arrowCount = arrowCount;
    this.arrowSize = arrowSize;
  }

  /**
   * Returns the cardinal direction of the arrow(s).
   *
   * @see #setDirection(int)
   */
  public int getDirection() {
    return direction;
  }

  /**
   * Sets the cardinal direction of the arrow(s).
   *
   * @param direction
   *            the direction of the arrow(s), can be SwingConstants.NORTH,
   *            SwingConstants.SOUTH, SwingConstants.WEST or
   *            SwingConstants.EAST
   * @see #getDirection()
   */
  public void setDirection(int direction) {
    this.direction = direction;
  }

  /** Returns the number of arrows. */
  public int getArrowCount() {
    return arrowCount;
  }

  /** Sets the number of arrows. */
  public void setArrowCount(int arrowCount) {
    this.arrowCount = arrowCount;
  }

  /** Returns the arrow size. */
  public int getArrowSize() {
    return arrowSize;
  }

  /** Sets the arrow size. */
  public void setArrowSize(int arrowSize) {
    this.arrowSize = arrowSize;
  }

  public Dimension getPreferredSize() {
    return getMinimumSize();
  }

  public Dimension getMinimumSize() {
    return new Dimension(arrowSize
        * (direction == SwingConstants.EAST
            || direction == SwingConstants.WEST ? arrowCount : 3)
        + getBorder().getBorderInsets(this).left
        + getBorder().getBorderInsets(this).right, arrowSize
        * (direction == SwingConstants.NORTH
            || direction == SwingConstants.SOUTH ? arrowCount : 3)
        + getBorder().getBorderInsets(this).top
        + getBorder().getBorderInsets(this).bottom);
  }

  public Dimension getMaximumSize() {
    return getMinimumSize();
  }

  protected void paintComponent(Graphics g) {
    // this will paint the background
    super.paintComponent(g);

    Color oldColor = g.getColor();
    g.setColor(isEnabled() ? getForeground() : getForeground().brighter());

    // paint the arrows
    int w = getSize().width;
    int h = getSize().height;
    for (int i = 0; i < arrowCount; i++) {
      paintArrow(
          g,
          (w - arrowSize
              * (direction == SwingConstants.EAST
                  || direction == SwingConstants.WEST ? arrowCount
                  : 1))
              / 2
              + arrowSize
              * (direction == SwingConstants.EAST
                  || direction == SwingConstants.WEST ? i : 0),
          (h - arrowSize
              * (direction == SwingConstants.EAST
                  || direction == SwingConstants.WEST ? 1
                  : arrowCount))
              / 2
              + arrowSize
              * (direction == SwingConstants.EAST
                  || direction == SwingConstants.WEST ? 0 : i),
          g.getColor());
    }

    g.setColor(oldColor);
  }

  private void paintArrow(Graphics g, int x, int y, Color highlight) {
    int mid, i, j;

    Color oldColor = g.getColor();
    boolean isEnabled = isEnabled();

    j = 0;
    arrowSize = Math.max(arrowSize, 2);
    mid = (arrowSize / 2) - 1;

    g.translate(x, y);

    switch (direction) {
    case NORTH:
      for (i = 0; i < arrowSize; i++) {
        g.drawLine(mid - i, i, mid + i, i);
      }
      if (!isEnabled) {
        g.setColor(highlight);
        g.drawLine(mid - i + 2, i, mid + i, i);
      }
      break;
    case SOUTH:
      if (!isEnabled) {
        g.translate(1, 1);
        g.setColor(highlight);
        for (i = arrowSize - 1; i >= 0; i--) {
          g.drawLine(mid - i, j, mid + i, j);
          j++;
        }
        g.translate(-1, -1);
        g.setColor(oldColor);
      }
      j = 0;
      for (i = arrowSize - 1; i >= 0; i--) {
        g.drawLine(mid - i, j, mid + i, j);
        j++;
      }
      break;
    case WEST:
      for (i = 0; i < arrowSize; i++) {
        g.drawLine(i, mid - i, i, mid + i);
      }
      if (!isEnabled) {
        g.setColor(highlight);
        g.drawLine(i, mid - i + 2, i, mid + i);
      }
      break;
    case EAST:
      if (!isEnabled) {
        g.translate(1, 1);
        g.setColor(highlight);
        for (i = arrowSize - 1; i >= 0; i--) {
          g.drawLine(j, mid - i, j, mid + i);
          j++;
        }
        g.translate(-1, -1);
        g.setColor(oldColor);
      }
      j = 0;
      for (i = arrowSize - 1; i >= 0; i--) {
        g.drawLine(j, mid - i, j, mid + i);
        j++;
      }
      break;
    }

    g.translate(-x, -y);
    g.setColor(oldColor);
  }
}

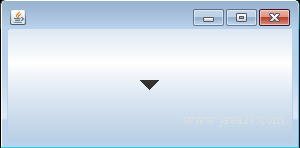

The code above generates the following result.
