Get and draw font outline in Java

Description

The following code shows how to get and draw font outline.

Example


import java.awt.Font;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.RenderingHints;
import java.awt.font.FontRenderContext;
import java.awt.font.GlyphVector;
/*from   ww w .  j a  v a  2s . c  o  m*/
import javax.swing.JComponent;
import javax.swing.JFrame;

class MyCanvas extends JComponent {
  public void paint(Graphics g) {
    Graphics2D g2d = (Graphics2D) g;
    g2d.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON);

    String s = "java2s.com";

    Font font = new Font("Courier", Font.PLAIN, 40);
    g2d.translate(20, 200);

    FontRenderContext frc = g2d.getFontRenderContext();

    GlyphVector gv = font.createGlyphVector(frc, s);
    int length = gv.getNumGlyphs();
    System.out.println(length);
    g2d.draw(gv.getOutline());
  }
}

public class Main {
  public static void main(String[] a) {
    JFrame window = new JFrame();
    window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    window.setBounds(30, 30, 450, 450);
    window.getContentPane().add(new MyCanvas());
    window.setVisible(true);
  }
}

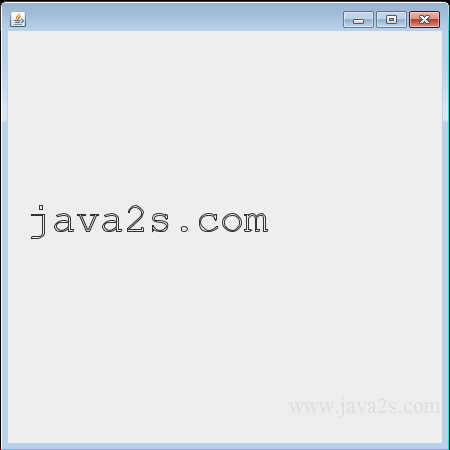

The code above generates the following result.

Get and draw font outline in Java
