Draw round rectangle with drawRoundRect in Java
Description
The following code shows how to draw round rectangle with drawRoundRect.
Example
//from ww w. ja v a 2s . com
import java.awt.Graphics;
import javax.swing.JComponent;
import javax.swing.JFrame;
class MyCanvas extends JComponent {
public void paint(Graphics g) {
g.drawRoundRect (5, 15, 50, 75, 20, 15);
}
}
public class Main {
public static void main(String[] a) {
JFrame window = new JFrame();
window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
window.setBounds(30, 30, 450, 450);
window.getContentPane().add(new MyCanvas());
window.setVisible(true);
}
}

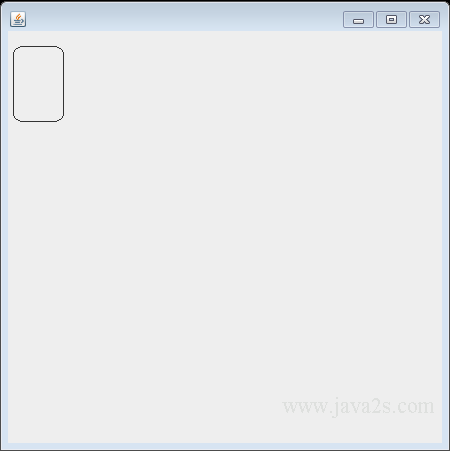

The code above generates the following result.
