Draw Glyph Vector in Java

Description

The following code shows how to draw Glyph Vector.

Example


import java.awt.Font;
import java.awt.Graphics;
import java.awt.Graphics2D;
import java.awt.RenderingHints;
import java.awt.font.FontRenderContext;
import java.awt.font.GlyphVector;
//from   w ww  .j  a  v a 2s. c  o m
import javax.swing.JComponent;
import javax.swing.JFrame;

class MyCanvas extends JComponent {
  public void paint(Graphics g) {
    Graphics2D g2 = (Graphics2D)g;

    g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,
        RenderingHints.VALUE_ANTIALIAS_ON);

    String s = "java2s.com";
    Font font = new Font("Serif", Font.PLAIN, 50);
    FontRenderContext frc = g2.getFontRenderContext();

    GlyphVector gv = font.createGlyphVector(frc, s);
    g2.drawGlyphVector(gv, 40, 60);
  }
}

public class Main {
  public static void main(String[] a) {
    JFrame window = new JFrame();
    window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    window.setBounds(30, 30, 450, 450);
    window.getContentPane().add(new MyCanvas());
    window.setVisible(true);
  }
}

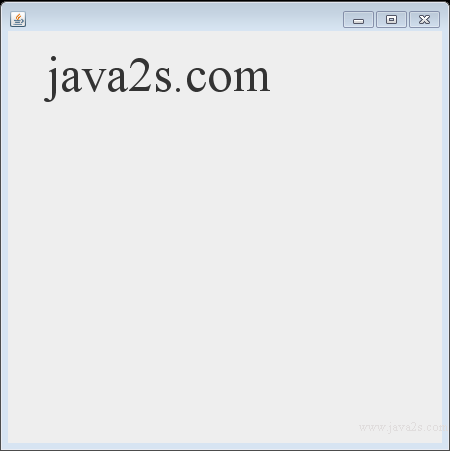

The code above generates the following result.

Draw Glyph Vector in Java
