Get font ascent, descent, height, leading in Java

Description

The following code shows how to get font ascent, descent, height, leading.

Example


import java.awt.Font;
import java.awt.FontMetrics;
import java.awt.Graphics;
//from  w w w .j av a2  s  . co  m
import javax.swing.JComponent;
import javax.swing.JFrame;

class MyCanvas extends JComponent {
  public void paint(Graphics g) {
    g.setFont(new Font("SansSerif", Font.BOLD, 12));
    FontMetrics fm = g.getFontMetrics();
    g.drawString("Current font: " + g.getFont(), 10, 40);
    g.drawString("Ascent: " + fm.getAscent(), 10, 55);
    g.drawString("Descent: " + fm.getDescent(), 10, 70);
    g.drawString("Height: " + fm.getHeight(), 10, 85);
    g.drawString("Leading: " + fm.getLeading(), 10, 100);

    Font font = new Font("Serif", Font.ITALIC, 14);
    fm = g.getFontMetrics(font);
    g.setFont(font);
    g.drawString("Current font: " + font, 10, 130);
    g.drawString("Ascent: " + fm.getAscent(), 10, 145);
    g.drawString("Descent: " + fm.getDescent(), 10, 160);
    g.drawString("Height: " + fm.getHeight(), 10, 175);
    g.drawString("Leading: " + fm.getLeading(), 10, 190);
  }
}

public class Main {
  public static void main(String[] a) {
    JFrame window = new JFrame();
    window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    window.setBounds(30, 30, 450, 450);
    window.getContentPane().add(new MyCanvas());
    window.setVisible(true);
  }
}

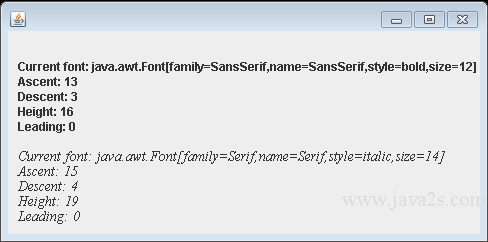

The code above generates the following result.

Get font ascent, descent, height, leading in Java
