Learn C - C Union






Sharing Memory

C can share same memory area by a number of different variables via a union.

A union is usually given a tag name in the same way as structure.

You use the keyword union to define a union.

For example, the following statement declares a union to be shared by three variables:


union U_example
{
  float decval;
  int *pnum;
  double my_value;
} u1;

This statement declares a union with the tag name U_example, which shares memory between decval, pnum, and my_value.

The statement also defines one instance of the union with a variable name of u1.

You can declare further instances of this union with a statement such as this:

union U_example u2, u3;

Members of a union are accessed in exactly the same way as members of a structure.

For example, to assign values to members of u1 and u2, you can write this:

u1.decval = 2.5;
u2.decval = 3.5*u1.decval;

The size of an instance of a union is the memory required for the largest member.





Example


#include <stdio.h>
      // ww w . ja va2s .  com
typedef union UDate UDate;
typedef struct Date Date;
typedef struct MixedDate MixedDate;
typedef struct NumericDate NumericDate;

void print_date(const Date* date);            // Prototype

enum Date_Format{numeric, text, mixed};       // Date formats

struct MixedDate {
  char *day;
  char *date;
  int year;
};
struct NumericDate {
  int day;
  int month;
  int year;
};
union UDate {
  char *date_str;
  MixedDate day_date;
  NumericDate nDate;
};
struct Date {
  enum Date_Format format;
  UDate date;
};

int main(void) {
  NumericDate yesterday = { 11, 11, 2020};
  MixedDate today = {"Monday", "12th November", 2020};
  char tomorrow[] = "Tues 13th Nov 2020";

  // Create Date object with a numeric date
  UDate udate = {tomorrow};
  Date the_date;
  the_date.date = udate;
  the_date.format = text;
  print_date(&the_date);

  // Create Date object with a text date
  the_date.date.nDate = yesterday;
  the_date.format = numeric;
  print_date(&the_date);

  // Create Date object with a mixed date
  the_date.date.day_date = today;
  the_date.format = mixed;
  print_date(&the_date);

  return 0;
}

void print_date(const Date* date) {
      switch(date->format) {
        case numeric:
          printf_s("The date is %d/%d/%d.\n", date->date.nDate.day,
                                              date->date.nDate.month,
                                              date->date.nDate.year);
          break;
        case text:
         printf_s("The date is %s.\n", date->date.date_str);
         break;
        case mixed:
         printf_s("The date is %s %s %d.\n", date->date.day_date.day,
                                             date->date.day_date.date,
                                             date->date.day_date.year);
          break;
        default:
          printf_s("Invalid date format.\n");
      }
}

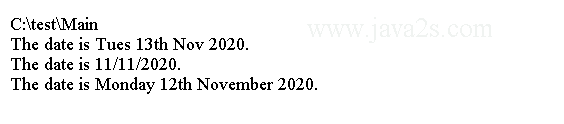

The code above generates the following result.
