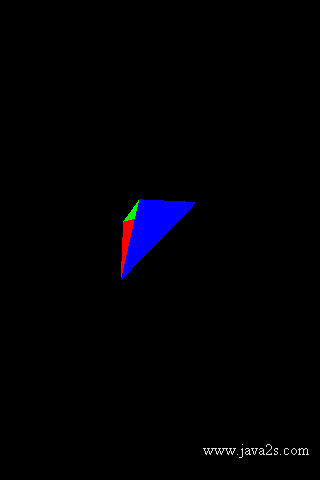

Pyramid

package com.java2s.myapplication3.app;
import java.nio.ByteBuffer;
import java.nio.ByteOrder;
import java.nio.FloatBuffer;
//  ww w  . java2s. c  o  m
import javax.microedition.khronos.opengles.GL10;

import javax.microedition.khronos.egl.EGLConfig;

import android.app.Activity;
import android.opengl.GLSurfaceView;
import android.opengl.GLSurfaceView.Renderer;
import android.opengl.GLU;
import android.os.Bundle;
import android.util.Log;
import android.view.Window;
import android.view.WindowManager;

public class MainActivity extends Activity {

    private GLSurfaceView glView;
    private ColouredPyramid pyramid;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN);
        glView = new GLSurfaceView(this);
        glView.setRenderer(new MyOpenGLRenderer());
        setContentView(glView);
    }

    class MyOpenGLRenderer implements Renderer {
        @Override
        public void onSurfaceChanged(GL10 gl, int width, int height) {
            gl.glViewport(0, 0, width, height);
            gl.glMatrixMode(GL10.GL_PROJECTION);
            gl.glLoadIdentity();
            GLU.gluPerspective(gl, 45.0f, (float) width / (float) height, 0.1f, 100.0f);
            gl.glMatrixMode(GL10.GL_MODELVIEW);
            gl.glLoadIdentity();
        }

        @Override
        public void onSurfaceCreated(GL10 gl, EGLConfig config) {
            pyramid = new ColouredPyramid();
        }
        @Override
        public void onDrawFrame(GL10 gl) {
            gl.glClearColor(0.0f, 0.0f, 0.0f, 1f);
            gl.glClear(GL10.GL_COLOR_BUFFER_BIT);
            gl.glLoadIdentity();
            gl.glTranslatef(0.0f, 0.0f, -10.0f);
            pyramid.draw(gl);
        }
    }
}

/**
 * @author tamas
 *
 */
class ColouredPyramid {

    private FloatBuffer vertexBuffer;
    private static final int VERTEX_SIZE = (3 + 4) * 4;
    private float vertices[] = {
            0.0f, 1.0f, 0.0f, 1, 0, 0, 1, // V1 - red
            -1.0f, 0.0f, 0.0f, 1, 0, 0, 1, // V2 - red
            0.0f, 0.0f, -1.0f, 1, 0, 0, 1, // V3 - red

            0.0f, 1.0f, 0.0f, 0, 1, 0, 1, // V1 - green
            0.0f, 0.0f, -1.0f, 0, 1, 0, 1, // V3 - green
            1.0f, 0.0f, 0.0f, 0, 1, 0, 1, // V4 - green

            0.0f, 1.0f, 0.0f, 0, 0, 1, 1, // V1 - blue
            1.0f, 0.0f, 0.0f, 0, 0, 1, 1, // V4 - blue
            -1.0f, 0.0f, 0.0f, 0, 0, 1, 1, // V2 - blue
    };

    private float rotation = 0.1f;

    public ColouredPyramid() {
        ByteBuffer byteBuffer = ByteBuffer.allocateDirect(ColouredPyramid.VERTEX_SIZE * 3 * 4);
        byteBuffer.order(ByteOrder.nativeOrder());
        vertexBuffer = byteBuffer.asFloatBuffer();
        vertexBuffer.put(vertices);
        vertexBuffer.flip();
    }

    public void draw(GL10 gl) {
        rotation += 1.0f;
        gl.glRotatef(rotation, 1f, 1f, 1f);
        gl.glEnableClientState(GL10.GL_VERTEX_ARRAY);
        gl.glEnableClientState(GL10.GL_COLOR_ARRAY);

        vertexBuffer.position(0);
        gl.glVertexPointer(3, GL10.GL_FLOAT, ColouredPyramid.VERTEX_SIZE, vertexBuffer);
        vertexBuffer.position(3);
        gl.glColorPointer(4, GL10.GL_FLOAT, ColouredPyramid.VERTEX_SIZE, vertexBuffer);

        gl.glDrawArrays(GL10.GL_TRIANGLES, 0, 3 * 3);
        gl.glDisableClientState(GL10.GL_VERTEX_ARRAY);
        gl.glDisableClientState(GL10.GL_COLOR_ARRAY);
    }
}
