Custom ListView item

Description

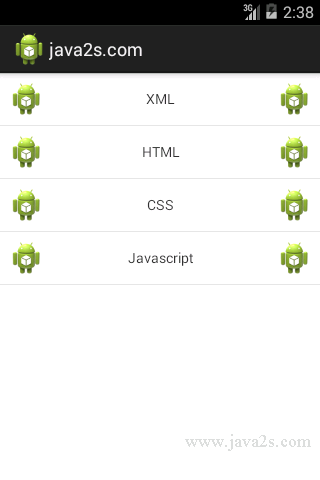

The following code shows how to Custom ListView item.

Example

res\layout\row.xml


<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="fill_parent"
  android:layout_height="wrap_content"
  android:orientation="horizontal"
  android:padding="10dip">
  <ImageView
    android:id="@+id/leftimage"
    android:layout_width="32dip"
    android:layout_height="32dip"
  />
  <ImageView
    android:id="@+id/rightimage"
    android:layout_width="32dip"
    android:layout_height="32dip"
    android:layout_alignParentRight="true"
  />

  <TextView
    android:id="@+id/line1"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:layout_toLeftOf="@id/rightimage"
    android:layout_toRightOf="@id/leftimage"
    android:layout_centerVertical="true"
    android:gravity="center_horizontal"
  />
</RelativeLayout>

MainActivity.java


package com.java2s.myapplication3.app;
/*from w ww  . ja va2s  . com*/
import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

public class MainActivity extends Activity {

    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        ListView list = new ListView(this);
        setContentView(list);

        CustomAdapter adapter = new CustomAdapter(this,
                R.layout.row,
                R.id.line1,
                new String[] {"XML","HTML","CSS","Javascript"});
        list.setAdapter(adapter);

    }

    private static class CustomAdapter extends ArrayAdapter<String> {

        public CustomAdapter(Context context, int layout, int resId, String[] items) {
            //Call through to ArrayAdapter implementation
            super(context, layout, resId, items);
        }

        @Override
        public View getView(int position, View convertView, ViewGroup parent) {
            View row = convertView;
            if(row == null) {
                row = LayoutInflater.from(getContext()).inflate(R.layout.row, parent, false);
            }

            String item = getItem(position);
            ImageView left = (ImageView)row.findViewById(R.id.leftimage);
            ImageView right = (ImageView)row.findViewById(R.id.rightimage);
            TextView text = (TextView)row.findViewById(R.id.line1);

            left.setImageResource(R.drawable.ic_launcher);
            right.setImageResource(R.drawable.ic_launcher);
            text.setText(item);

            return row;
        }
    }
}
