Build a UI Completely in XML

Description

XML layout files are stored under the resources (/res/) directory in a folder called layout.

Example


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical">
    <!-- NAME CONTAINER -->//ww w .  j av  a2s . c  o  m
    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Name:" />

        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Java2s.com" />

    </LinearLayout>

    <!-- ADDRESS CONTAINER -->
    <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical">

        <TextView
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:text="Address:" />

        <TextView
            android:layout_width="fill_parent"
            android:layout_height="wrap_content"
            android:text="Main Street" />
    </LinearLayout>

</LinearLayout>

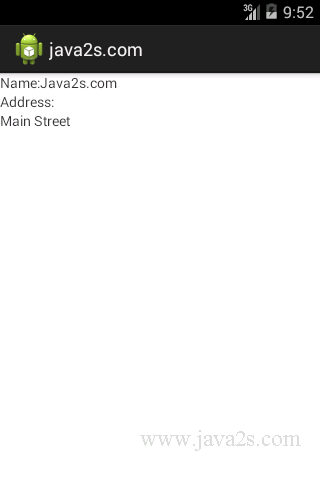

Build a UI Completely in XML

Note

The following java code references the layout setContentView(R.layout.main).


package com.java2s.app;
//w  w  w.jav a 2s .co  m
import android.app.Activity;
import android.os.Bundle;
import android.view.ViewGroup.LayoutParams;
import android.widget.LinearLayout;
import android.widget.TextView;
public class MainActivity extends Activity
{
    @Override
    public void onCreate(Bundle savedInstanceState)
    {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
    }
}
