Database backed Content provider

Description

The following code shows how to create Database backed Content provider.

Example


<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
              android:orientation="vertical"
              android:layout_width="match_parent"
              android:layout_height="match_parent">

    <ListView
        android:layout_width="fill_parent"
        android:layout_height="match_parent"
        android:id="@+id/listView"/>
</LinearLayout>

Java code


import android.content.ContentValues;
import android.content.Context;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;
import android.provider.BaseColumns;
import android.app.Activity;
import android.content.ContentValues;
import android.database.Cursor;
import android.os.Bundle;
import android.widget.ListView;
import android.widget.SimpleCursorAdapter;
import android.widget.Toast;
/*ww w.  java2 s .  c  o  m*/
public class MainActivity extends Activity {
  private MyDatabaseHelper mDatabaseHelper;

  public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.my_activity);

    mDatabaseHelper = new MyDatabaseHelper(this);

    Cursor c = mDatabaseHelper.query(MyDatabaseHelper.TABLE_USERS, MyDatabaseHelper.COL_NAME);
    String[] from = new String[]{MyDatabaseHelper.COL_NAME, MyDatabaseHelper.COL_EMAIL};
    int[] to = { android.R.id.text1, android.R.id.text2 };

    SimpleCursorAdapter adapter = new SimpleCursorAdapter(this, android.R.layout.simple_list_item_2, c, from, to, 0);

    ListView listView = (ListView) findViewById(R.id.listView);
    listView.setAdapter(adapter);

    addUser(null, null, 0);
    addUser("XML", "xml@example.com", 0);
    addUser("HRML", "html@example.com", 0);
    addUser("CSS", "css@example.com", 0);
  }

  private void addUser(String name, String email, long dateOfBirthMillis) {
    ContentValues values = new ContentValues();
    values.put(MyDatabaseHelper.COL_NAME, name);

    if (email != null) {
      values.put(MyDatabaseHelper.COL_EMAIL, email);
    }

    if (dateOfBirthMillis != 0) {
      values.put(MyDatabaseHelper.COL_DOB, dateOfBirthMillis);
    }

    try {
      mDatabaseHelper.insert(MyDatabaseHelper.TABLE_USERS, values);
    } catch (MyDatabaseHelper.NotValidException e) {
      Toast.makeText(this, e.getMessage(), Toast.LENGTH_SHORT).show();
    }
  }
}

class MyDatabaseHelper extends SQLiteOpenHelper {
  public static final String TABLE_USERS = "users";
  public static final String COL_ID = BaseColumns._ID;
  public static final String COL_NAME = "name";
  public static final String COL_EMAIL = "email";
  public static final String COL_DOB = "date_of_birth";
  private static final String DATABASE_NAME = "my_app.db";
  private static final int DATABASE_VERSION = 1;

  public MyDatabaseHelper(Context context) {
    super(context, DATABASE_NAME, null, DATABASE_VERSION);
  }

  @Override
  public void onCreate(SQLiteDatabase db) {
    db.execSQL("CREATE TABLE " + TABLE_USERS + " ("
        + COL_ID + " INTEGER PRIMARY KEY AUTOINCREMENT,"
        + COL_NAME + " TEXT NOT NULL,"
        + COL_EMAIL + " TEXT,"
        + COL_DOB + " INTEGER"
        + ");");
  }

  @Override
  public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {
    db.execSQL("DROP TABLE IF EXISTS " + TABLE_USERS + ";");
    onCreate(db);
  }

  public long insert(String tableName, ContentValues values) throws NotValidException {
    validate(values);

    return getWritableDatabase().insert(tableName, null, values);
  }

  public int update(String tableName, long id, ContentValues values) throws NotValidException {
    validate(values);

    String selection = COL_ID + " = ?";
    String[] selectionArgs = {String.valueOf(id)};

    return getWritableDatabase().update(tableName, values, selection, selectionArgs);
  }

  public int delete(String tableName, long id) {
    String selection = COL_ID + " = ?";
    String[] selectionArgs = {String.valueOf(id)};

    return getWritableDatabase().delete(tableName, selection, selectionArgs);
  }

  protected void validate(ContentValues values) throws NotValidException {
    if (!values.containsKey(COL_NAME) || values.getAsString(COL_NAME) == null || values.getAsString(COL_NAME).isEmpty()) {
      throw new NotValidException("User name must be set");
    }
  }

  public Cursor query(String tableName, String orderedBy) {
    String[] projection = {COL_ID, COL_NAME, COL_EMAIL, COL_DOB};
    return getReadableDatabase().query(tableName, projection, null, null, null, null, orderedBy);
  }

  public static class NotValidException extends Throwable {
    public NotValidException(String msg) {
      super(msg);
    }
  }
}

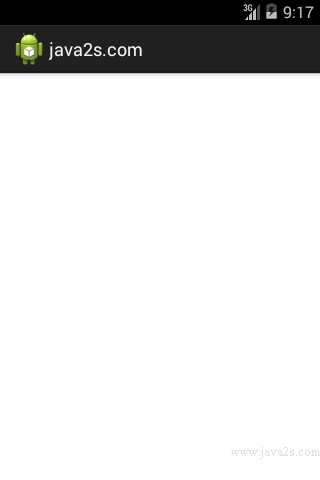

The code above generates the following result.
